Panther Precision All Geared Lathes

Description

Sailent Features :

Lathe Bed Is Of Close Grained Alloy Castings Duly Flame Hardened And Ground With Brinell Hardness Of Over 300 Bhn
Head Stock Gears of Special Alloy Steel Duly Hardened and Profile Ground
Head Stock Spindle is of Hardened And Ground And Runs in Anti Friction Taper Roller Bearings
Quick Change Norton Type Gear Box Provides Wide Range of Inch / MM Threads & Feeds
Switch Shaft For Forward / Reverse Rotation of Spindle
We are Providing one Taper Roller and one Needle roller in Front for Better Rigidity
Spindle Nose : A2 Size 8 • Accuracy Is Tested As Per Is : 1878 (Part I) 1971..

Specification

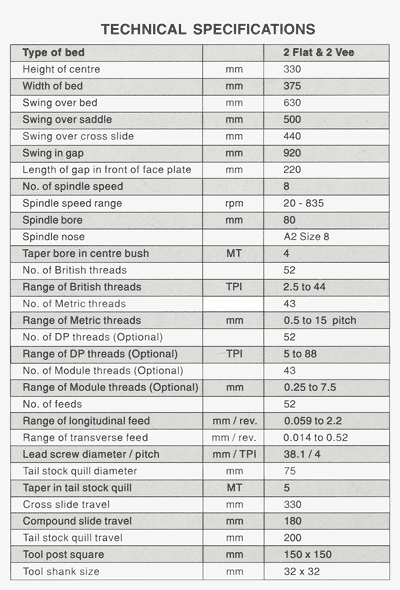

Technical Specifications

Type of bed		2 Flat & 2 Vee
Height of centre	mm	330
Width of bed	mm	375
Swing over bed	mm	630
Swing over saddle	mm	500
Swing over cross slide	mm	440
Swing in gap	mm	920
Length of gap in front of face plate	mm	220
No. of spindle speed / range		8 / 20-835
Spindle speed range	rpm	20 - 835
Spindle bore	mm	80
Spindle nose		A2 Size 8
Taper bore in centre bush	MT	4
Tail stock spindle diameter	mm	75
Taper in tail stock quill	MT	5
Cross Slide travel	mm	330
Compound slide travel	mm	180
Tail stock quill travel	mm	200
Tool post square	mm	150 x 150
Tool shank size	mm	32 x 32

Model		3050/1	3050/2	3050/3	3050/4	3050/5	3050/6	3050/7
Length of bed	mm	2130	2730	3030	3630	4230	4830	5430
Admit between centers	mm	900	1500	1800	2400	3000	3600	4200
Motor	HP	5	5	5	7.5	7.5	7.5	7.5
Floor space L x W	mm	3050 x 1300	3650 x 1300	3950 x 1300	4550 x 1300	5150 x 1300	5750 x 1300	6350 x 1300
Net weight	Kg	1800	2000	2200	2600	3000	3400	3800
Gross Weight	Kg	2000	2200	2400	2800	3200	3600	4000

PANTHER PRECISION ALL GEARED LATHES - 3050 SERIES
Height of Centre : 330MM
Swing over Bed : 630MM
Dist. Between Centres : 900 - 4200MM
Spindle Bore : 80MM

Click for complete specifications

Catalogue, Manual & Downloads

Panther 3050.pdf

Panther 3050 Manual.pdf

Panther Lathes 2013 Product Catalogue.pdf

Accessories

STANDARD ACCESSORIES

Hardened Guideways Electricals Consisting of Elec. Motor
‘V’ Belts
Electrical Control Panel
Catch Plate
Inch & Mm Gears
2mt Dead Centres with Centre Bush
Oil Can
Set of Allen Keys Spanners

OPTIONAL ACCESSORIES

Chuck /18”X4 Jaw Dog Chuck /10”X 3
Jaw Self Centering Chuck /12”X 3 Jaw
Self Centering Chuck/Quick Change Tool
Post With Five Tool Holder/Rear Splash
Guard/Tool Post Grinder: (A)External &
Internal Combined (W/O Electric Motor)
(B) Only Internal (C)Only External (D)
1 Hp – 3 Phase Electricals/ Mt – 4
Revolving Centre /Control Panel With
Foot Brake/Set Of Anti Vibration Mounts (A) 3050/1 TO 3050/4
(B) 3050/5 & 3050/7
